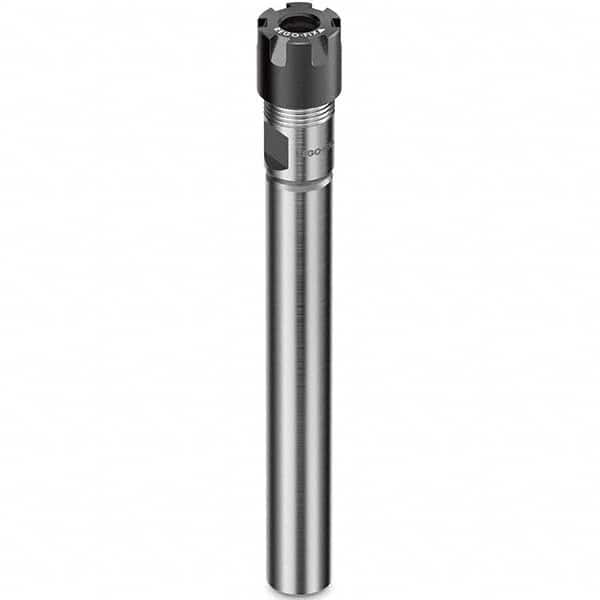

Rego-Fix - 0.5mm x 10mm Straight Shank ER16 Collet Chuck
Item #: 18467985
Brand: Rego-Fix
Model #: 2620.11660
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER16 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 20.00 |
| Projection (mm) | 100.00 |
| Through Coolant | Yes |
| Minimum Collet Capacity (mm) | 0.50 |
| Maximum Collet Capacity (mm) | 10.00 |
| Overall Length (mm) | 130.50 |
| Actuator Type | Wrench |
| Type | ER Collet |
| Shank Length (mm) | 100.00 |
| Nose Diameter (mm) | 28.00 |
| Locknut Diameter (Decimal Inch) | 1.1032 |
| TIR (Decimal Inch) | 0.0001 |
| TIR (mm) | 0.0030 |
| TIR (mum) | 3.00 |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (mm) | 28.00 |
| Additional Information | With Hi-Q Nut |
