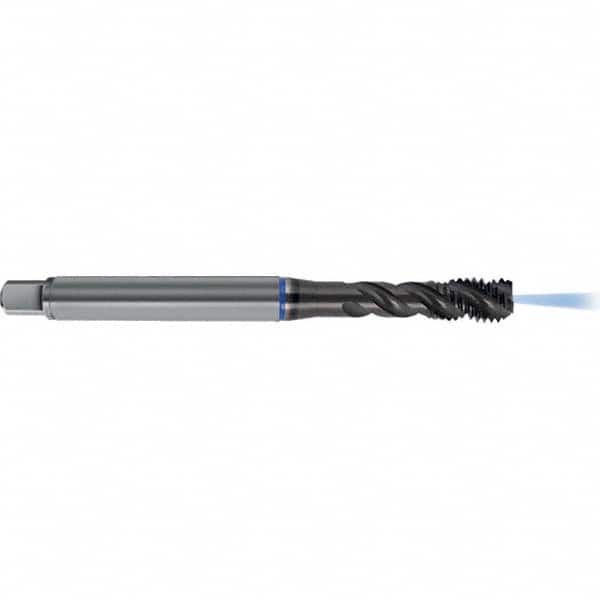

Guhring - Spiral Flute Taps Thread Size (mm): M16x2.00 Chamfer: Semi-Bottoming
Item #: 12263273
Brand: Guhring
Model #: 9046360160000
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
Titanium Aluminum Nitride (TiAlN) has a higher hardness and oxidation temperature versus TiN and TiCN. As a result, it is particularly advantageous for higher speed operations in a variety of steel machining applications.
Spiral flutes are constructed of a high flute angle to remove chips more easily.
Product Specifications
Spiral Flute Taps; Thread Size (mm): M16x2.00 ; Chamfer: Semi-Bottoming ; Class of Fit: 6HX ; Thread Limit: D6/D7 ; Number of Flutes: 3 ; Material: PM-HSS-E
| Thread Size (mm) | M16x2.00 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 6HX |
| Thread Limit | D6/D7 |
| Number of Flutes | 3 |
| Material | PM-HSS-E |
| Finish/Coating | TiAlN |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | Through Coolant |
| Overall Length (mm) | 110.00 |
| Helix Angle | 45 |
| Thread Standard | Metric |
| Oversize | No |
| Flute Type | Spiral |
| Style | Spiral Flute |
| Series/List | 4636 |
| Shank Diameter (mm) | 9.00 |
