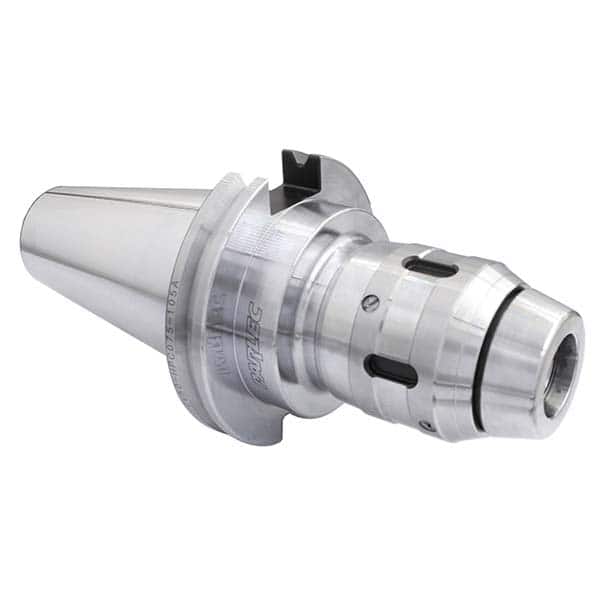

Parlec - Milling Chucks Taper Size: BT40 Shank Type: Taper Shank
Item #: 10339927
Brand: Parlec
Model #: 74204064
Product Specifications
Milling Chucks; Taper Size: BT40 ; Shank Type: Taper Shank ; Hole Diameter (Inch): 0.75 ; Nose Diameter (Decimal Inch): 2.2000 ; Projection (Decimal Inch): 4.1300 ; Through Coolant: Yes
| Taper Size | BT40 |
| Shank Type | Taper Shank |
| Hole Diameter (Inch) | 0.75 |
| Nose Diameter (Decimal Inch) | 2.2000 |
| Projection (Decimal Inch) | 4.1300 |
| Through Coolant | Yes |
| TIR (mm) | 0.0030 |
| Clamping Depth (Decimal Inch) | 1.9700 |
| Overall Length (Decimal Inch) | 6.71000 |
| Balanced to (RPM) | 10000 |
| TIR (Decimal Inch) | 0.000100 |
| Coolant Type | Through-Spindle |
