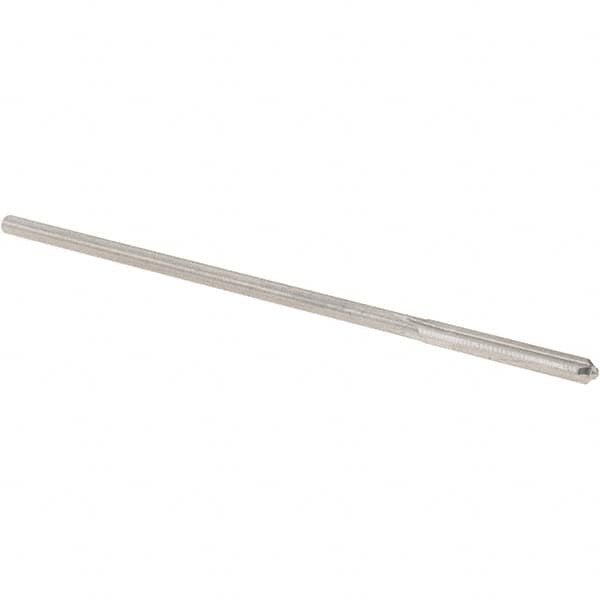

Alvord Polk - 0.0905" High Speed Steel 4 Flute Chucking Reamer
Item #: 43987197
Brand: Alvord Polk
Model #: 10125
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Straight flute reamers are the most common and are used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts.
| Product Specifications | |
|---|---|
| Reamer Diameter (Decimal Inch) | 0.0905 |
| Reamer Material | High Speed Steel |
| Shank Type | Straight |
| Flute Type | Straight |
| Overall Length (Decimal Inch) | 3.0000 |
| Overall Length (Inch) | 3 |
| Flute Length (Inch) | 3/4 |
| Flute Length (Decimal Inch) | 0.7500 |
| Variable Diameter Reamer Type | None |
| Number of Flutes | 4 |
| Minimum Shank Diameter (Decimal Inch) | 0.0800 |
| Maximum Shank Diameter (Decimal Inch) | 0.0810 |
| Over/Under Size Reamer | No |
| Dowel Pin Reamer | No |
| Cutting Direction | Right Hand |
| Reamer Finish/Coating | Bright |
| Reamer Diameter Tolerance (Decimal Inch) | +0.0002 to -0.0000 |
