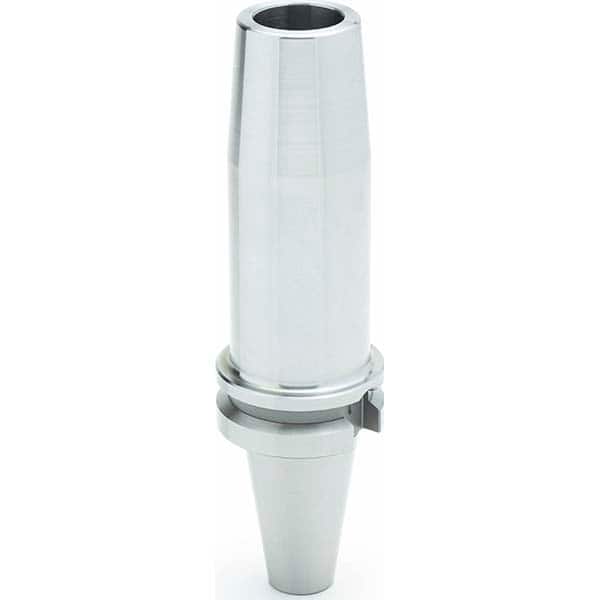

Parlec - Shrink-Fit Tool Holders & Adapters Shank Type: Taper Shank Taper Size: BT40
Item #: 10340537
Brand: Parlec
Model #: BT40-38SF630-9C
Features and Benefits
Taper shanks are held in the machine spindle or in a toolholder clamping system.
Product Specifications
Shrink-Fit Tool Holders & Adapters; Shank Type: Taper Shank ; Taper Size: BT40 ; Hole Diameter (Inch): 0.375 ; Projection (Decimal Inch): 6.3000 ; Nose Diameter (Decimal Inch): 0.9400 ; Through Coolant: Yes
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Hole Diameter (Inch) | 0.375 |
| Projection (Decimal Inch) | 6.3000 |
| Nose Diameter (Decimal Inch) | 0.9400 |
| Through Coolant | Yes |
| Clamping Depth (Decimal Inch) | 1.6900 |
| Overall Length (Decimal Inch) | 9.94000 |
| Balanced to (RPM) | 25000 |
| TIR (mm) | 0.0020 |
