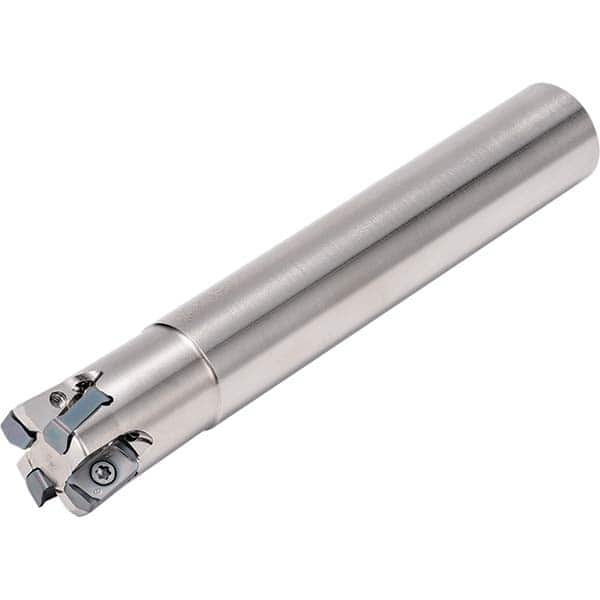

Kyocera - Indexable High-Feed End Mills Maximum Depth of Cut (mm): 22.23 Maximum Depth of Cut (Decimal Inch): 0.8750
Item #: 16391062
Brand: Kyocera
Model #: 8609375
Product Specifications
Indexable High-Feed End Mills; Maximum Depth of Cut (mm): 22.23 ; Maximum Depth of Cut (Decimal Inch): 0.8750 ; Shank Type: Cylindrical ; Shank Diameter (mm): 19.0500 ; Shank Diameter (Decimal Inch): 0.7500 ; Number of Cutter Inserts: 3
| Maximum Depth of Cut (mm) | 22.23 |
| Maximum Depth of Cut (Decimal Inch) | 0.8750 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 19.0500 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Cutter Inserts | 3 |
| Insert Style | LOGU03 |
| Toolholder Style | MFH |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Number of Flutes | 3 |
| Maximum RPM | 14700.000 |
| Through Coolant | Yes |
| Head Length (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 0.8750 |
| Overall Length (mm) | 139.7000 |
| Overall Length (Decimal Inch) | 5.50000 |
| Toolholder Material | Steel |
| Series | MFH-Mini |
| Lead Angle | 10 |
| Head Length (mm) | 50.80 |
| Manufacturers Catalog Number | MFH0875S750033T55 |
