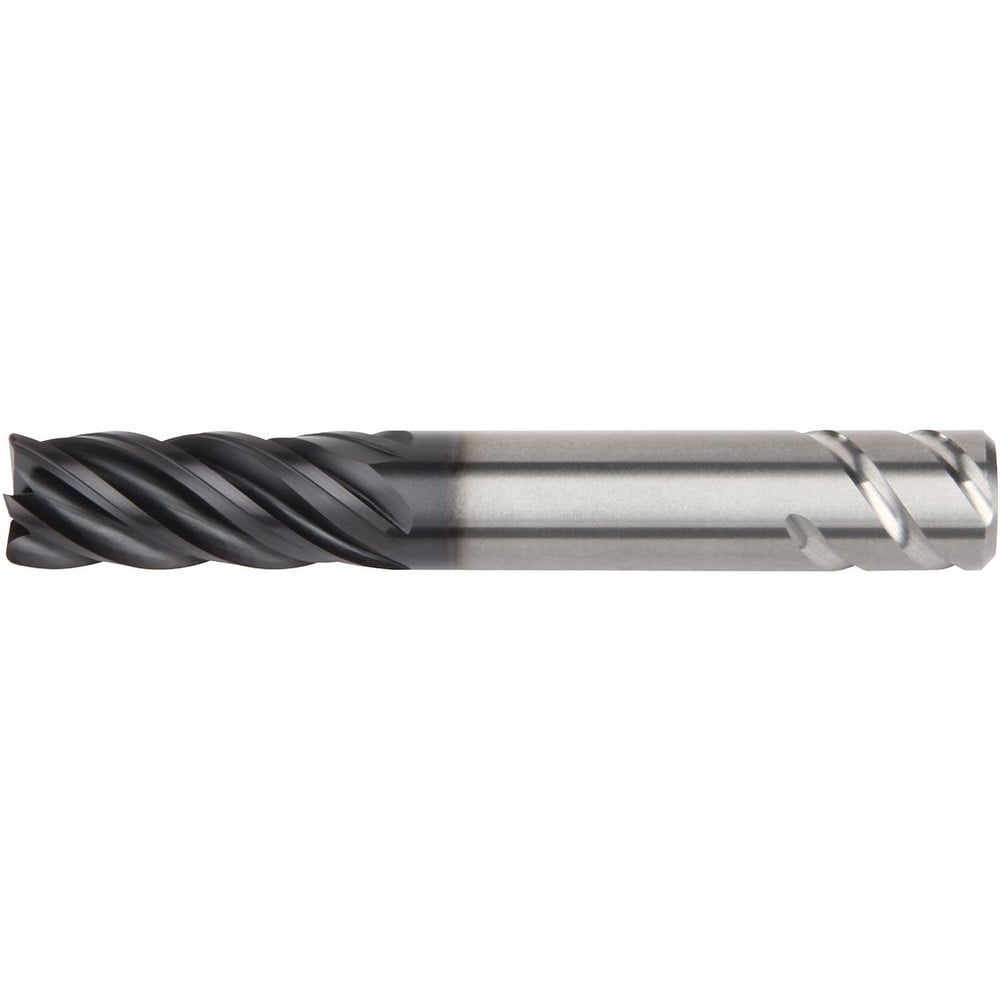

Corner Radius End Mill: 3/8" Dia, 7/8" LOC, 0.0300" Radius, 5 Flute, Solid Carbide
Item #: 33964958
Brand: Widia
Model #: 5594858
Product Specifications
| Mill Diameter (Inch) | 3/8 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 7/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | WS15PE |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Variable Index | Yes |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Pitch | Close |
| Overall Length (Decimal Inch) | 2.5000 |
| Chipbreaker | No |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.8750 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Reach Length (Decimal Inch) | 0.8750 |
| Reach Length (Inch) | 7/8 |
| Primary Workpiece Material | High Temperature Alloy |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; H; M |
| Material Grade | WS15PE |
| Series | 5V0E |
| Material Application | Hard Material; High-Temperature Alloy; Stainless Steel; Steel |
| Coating Classification | PVD |
| For Use With. | Toolholders |
| Helix Style | Medium |
