H63TH-A25KDCLNR12 HLDR
Item #: MB05436568
Brand: Mitsubishi Materials USA
Model #: 436568

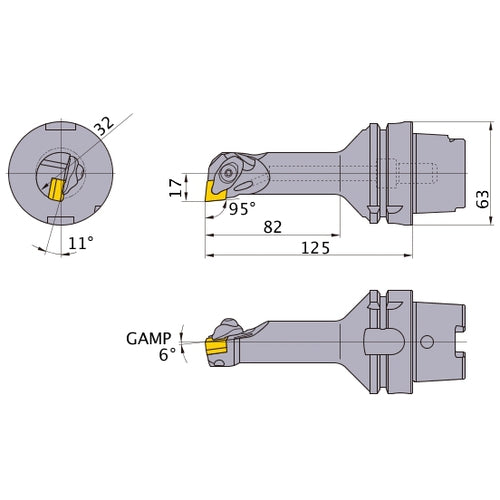

| Product Specifications | |
|---|---|
| Functional Length (LF) | 125 mm |
| Rake Angle Radial (GAMF) | 11 Degrees |
| Functional Width (WF) | 17 mm |
| Usable Length (LU) | 82 mm |
| Connection Diameter Machine Side (DCONMS) | 63 mm |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 32 mm |
| Series/List # | DCLN_BORING |
| Cutting Direction (HAND) | Right Hand |
