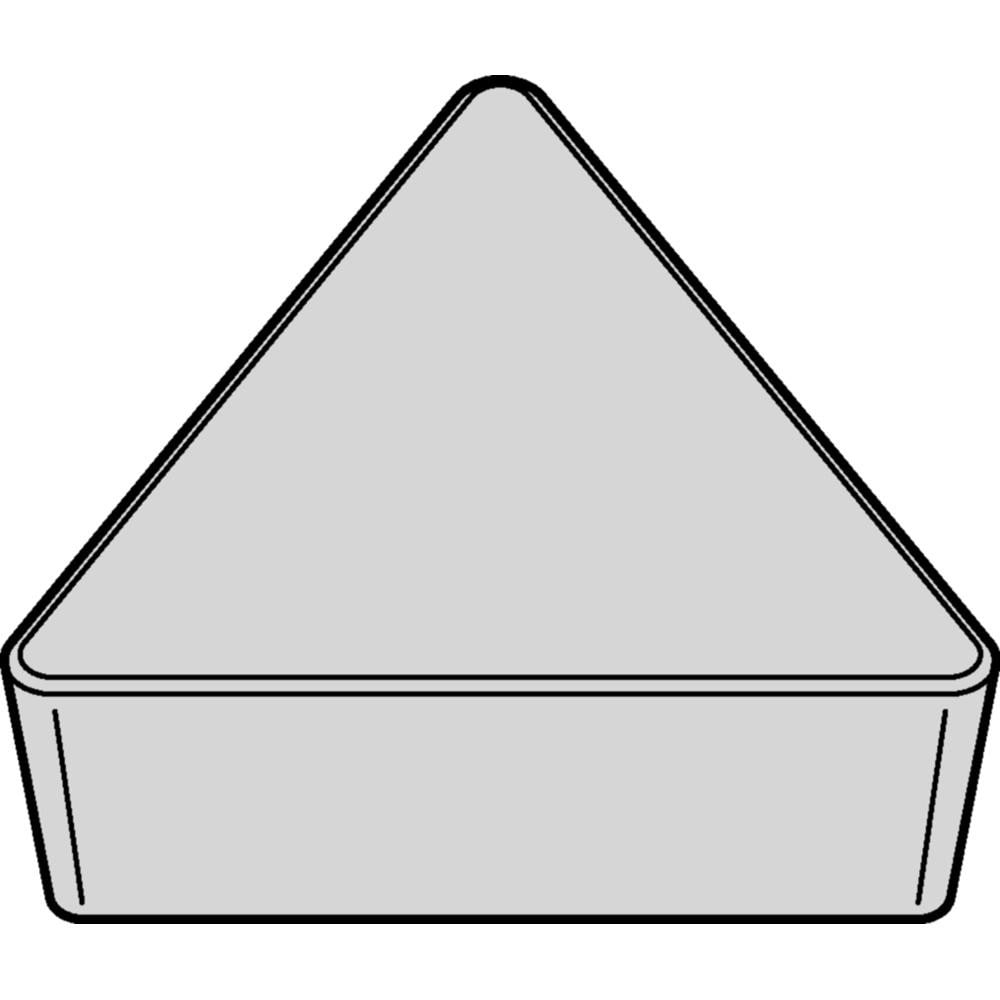

Brand: Widia / Part #: 2562796
Item #: 95105573
Brand: Widia
Model #: 2562796
Product Specifications
| Insert Style | TPU |
| Insert Shape Code | T |
| Insert Size Code | 322 |
| Insert Shape | Triangle |
| Coating/Finish | Uncoated |
| Manufacturer Grade | TTR-X |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Material | Carbide |
| Maximum Depth of Cut (Decimal Inch) | 0.3248 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Clearance Code | P |
| Tolerance Code | U |
| Included Angle | 60.00 |
| Relief Angle | 11.000 |
| Series | TPUN |
| Coating Process | Uncoated |
| Rake | Positive |
| Wiper Edge | No |
| Insert Length (Decimal Inch) | 0.6496 |
| Number Of Cutting Edges | 3 |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Ansi Code | TPU322 |
| Iso Code | TPUN160308 |
| Manufacturers Catalog Number | TPU322 |
| Cutting Direction | Neutral |
| Coating Classification | Uncoated |
| Chip Breaker | None |
| Style | TPUN |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Internal Turning |
