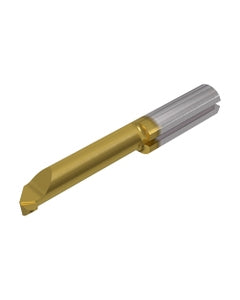

PICCO L 006.1.00-25 IC228
Item #: EH646403538
Brand: Iscar
Model #: 6403538
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.236″ |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0394″ |
| Cutting Position | Internal |
| Cutting Width (CW) | 0.079″ |
| Application | | Int. Profiling | |
| Cutting Depth Maximum (CDX) | 0.071″ |
| Tool Type | Solid, Turning & Grooving |
| Overall Length (OAL) | 1.575″ |
| Minimum Bore Diameter (DMIN) | 0.236″ |
| Cutting Direction (HAND) | Left Hand |
| Front End Width (a) | 0.209″ |
| Cutting Edge Material | Carbide |
| Measurement Type | Inch |
| Coating | TiCN+TiN |
| Body Material | Carbide |
| Grade | IC228 |
