IMX12C3A0500R030P ET2020 CARB EM
Item #: MB03827340
Brand: Mitsubishi Materials USA
Model #: 827340

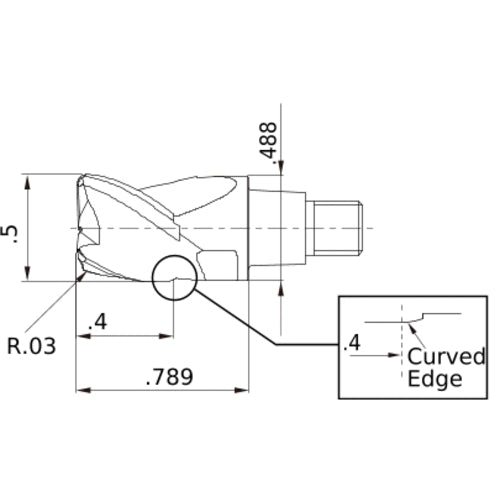

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| Flute Helix Angle (FHA) | 37.5 Degrees |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Grade | ET2020 |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Corner Radius (RE) | 0.03″ |
| Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.4″ |
| Series/List # | iMX_C3A_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.488″ |
| End Shape | Corner Radius |
| Functional Length (LF) | 0.789″ |
