IMX16S3A0625P ET2020 SOLID CARB EM
Item #: MB03827139
Brand: Mitsubishi Materials USA
Model #: 827139

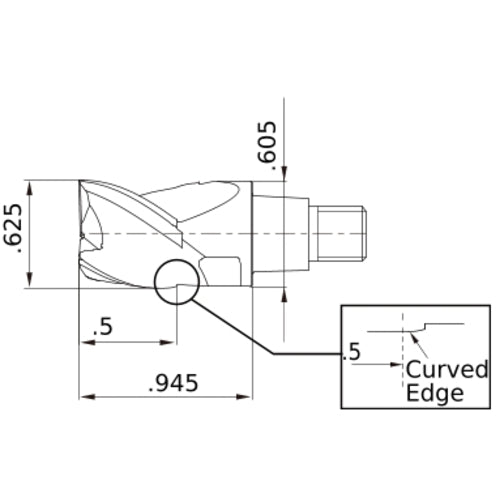

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 5/8″ |
| Flute Helix Angle (FHA) | 37.5 Degrees |
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Grade | ET2020 |
| Flute Count (NOF) | 3 |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 1/2″ |
| Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.605″ |
| Series/List # | iMX_S3A_INCH |
| Functional Length (LF) | 0.945″ |
| End Shape | Square |
