VFFDRBD0600 CATALOG SOLID CARB EM
Item #: MB03825395
Brand: Mitsubishi Materials USA
Model #: 825395

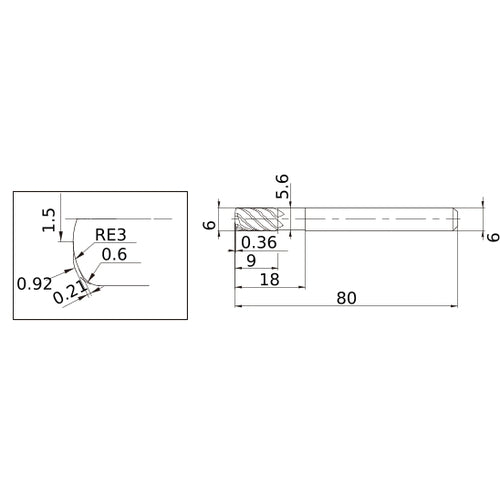

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| Corner Radius (RE) | 0.6 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Ramping Angle Maximum (RMPX) | 1.7 Degrees |
| Depth of Cut Maximum (APMX) | 0.36 mm |
| Neck Diameter (DN) | 5.6 mm |
| Overall Length (OAL) | 80 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coating | VF |
| Length Group | Long - Necked |
| Flute Helix Angle (FHA) | 40 Degrees |
| Measurement Type | Metric |
| End Shape | Corner Radius |
| Series/List # | VFFDRB |
| Usable Length (LU) | 18 mm |
