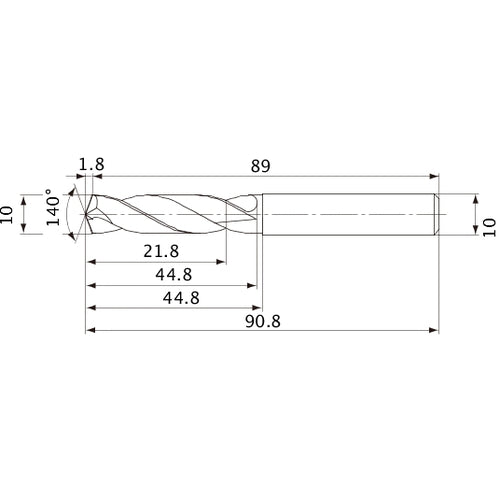

MVE1000X02S100 DP1020 10 mm Dia. × 10 mm Shank × 44.8 mm Flute Length × 90.8 mm OAL, 140°, 2 Flute, External Coolant, Solid Carbide Drill
Item #: MB03664472
Brand: Mitsubishi Materials USA
Model #: 664472
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 10 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10 mm |
| Cutting Edge Material | Carbide |
| Length Group | 2xD |
| Grade | DP1020 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Series/List # | MVE |
| Head Length (LH) | 44.8 mm |
| Usable Length (LU) | 21.8 mm |
| Coolant Supply Property (CSP) | External |
| Length Chip Flute (LCF) | 44.8 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 90.8 mm |
| Point Length (PL) | 1.8 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 89 mm |
| Feature | New grade DP1020 offers long tool life for a wide range of work materials.,The unique wavy cutting edge provides excellent sharpness and rigidity and helps to control wear at the periphery. |
