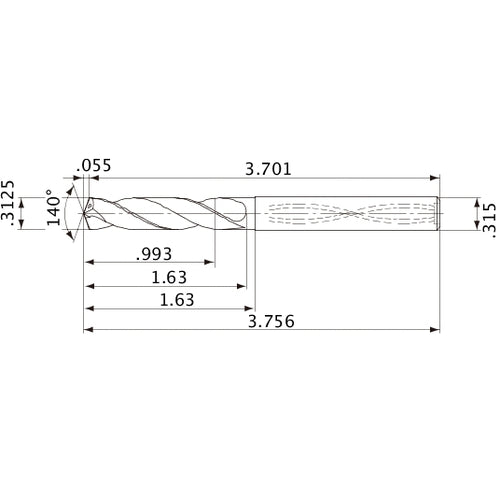

MVS0794X03S080 DP1020 5/16″ Dia. × 0.315″ Shank × 1.63″ Flute Length × 3.756″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03662709
Brand: Mitsubishi Materials USA
Model #: 662709
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5/16″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 5/16″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.3125″ |
| Grade | DP1020 |
| Length Group | 3xD |
| Measurement Type | Inch |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials |
| Series/List # | MVS_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Usable Length (LU) | 0.993″ |
| Head Length (LH) | 1.63″ |
| Length Chip Flute (LCF) | 1.63″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 3.756″ |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Point Length (PL) | 0.055″ |
| Feature | New grade DP1020 offers long tool life for a wide range of work materials.,Unique coolant supply technology, TRI-cooling offers high machining efficiency. (on drills over ø6) |
| Functional Length (LF) | 3.701″ |
