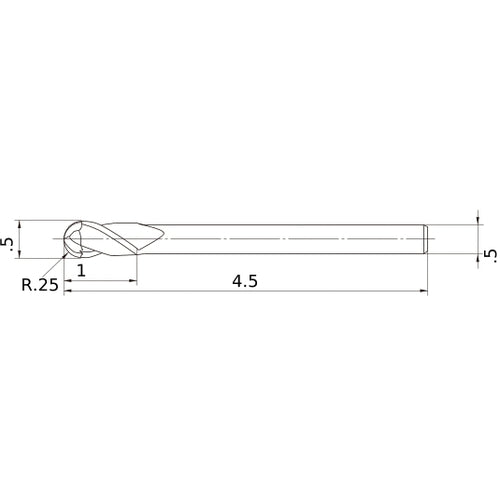

VF2SBD1/2 CARBIDE ENDMILL
Item #: MB03613843
Brand: Mitsubishi Materials USA
Model #: 613843
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| End Shape | Ball |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 1″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 2 |
| Overall Length (OAL) | 4-1/2″ |
| Length Group | Short |
| Coating | VF |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 2 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | VF2SB_INCH |
