1/16″ Dia. × 1/4″ Shank × 1/16″ DOC × 2-1/2″ OAL, Carbide Impact Miracle, 2 Flute, 30° Helix, Ballnose End Mill VF2XLBD1/16N6D
Item #: MB03613675
Brand: Mitsubishi Materials USA
Model #: 613675

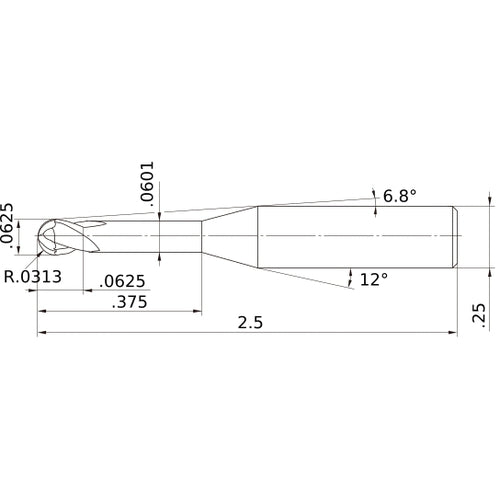

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/16″ |
| Corner Radius (RE) | 0.0313″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Neck Diameter (DN) | 0.0601″ |
| Depth of Cut Maximum (APMX) | 1/16″ |
| Body Half Taper Angle (BHTA) | 12 Degrees |
| Overall Length (OAL) | 2-1/2″ |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Long - Necked |
| Coating | VF |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Decimal Equivalent | 0.0625″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Measurement Type | Inch |
| Usable Length (LU) | 3/8″ |
| Series/List # | VF2XLB_INCH |
