AHX640S-125B08AR MILL
Item #: MB03611653
Brand: Mitsubishi Materials USA
Model #: 611653

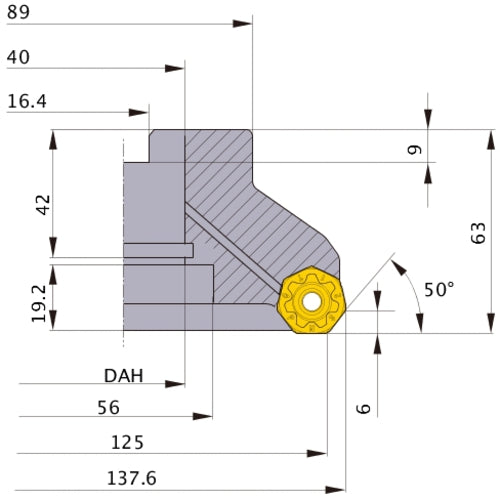

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 125 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 125 mm |
| Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 137.6 mm |
| Functional Length (LF) | 63 mm |
| Depth of Cut Maximum (APMX) | 6 mm |
| Tool Cutting Edge Angle (KAPR) | 50 Degrees |
| Connection Diameter Machine Side (DCONMS) | 40 mm |
| Series/List # | AHX640S_MM |
