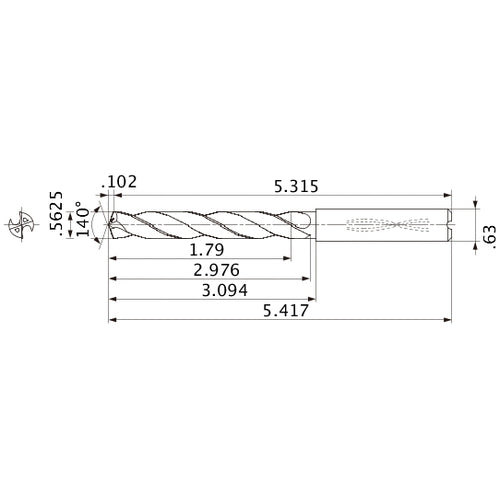

MMS1429X3D160 DP7020 9/16″ Dia. × 0.63″ Shank × 2.976″ Flute Length × 5.417″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03601615
Brand: Mitsubishi Materials USA
Model #: 601615
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 9/16″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 9/16″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.5625″ |
| Grade | DP7020 |
| Length Group | 3xD |
| Measurement Type | Inch |
| Applicable Material | Cast Iron |
| Series/List # | MMS_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.63″ |
| Usable Length (LU) | 1.79″ |
| Head Length (LH) | 3.094″ |
| Length Chip Flute (LCF) | 2.976″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 5.417″ |
| Point Angle (SIG) | 140 Degrees |
| Flute Count (NOF) | 2 |
| Point Length (PL) | 0.102″ |
| Feature | New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.,Long drill life and high efficiency drilling of holes in stainless steel. |
| Functional Length (LF) | 5.315″ |
