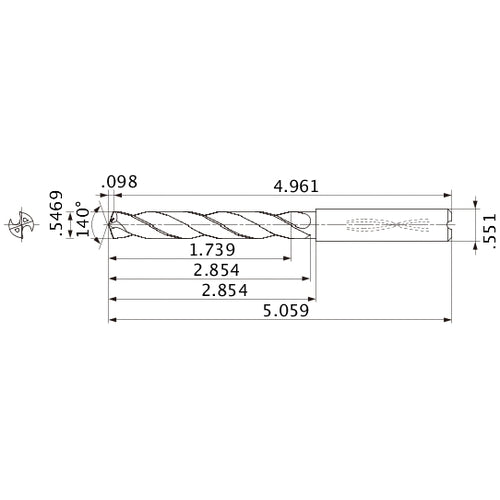

MMS1389X3D140 DP7020 0.5469″ Dia. × 0.551″ Shank × 2.854″ Flute Length × 5.059″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03601607
Brand: Mitsubishi Materials USA
Model #: 601607
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.5469″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.5469″ |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Grade | DP7020 |
| Applicable Material | Cast Iron |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.551″ |
| Series/List # | MMS_INCH |
| Head Length (LH) | 2.854″ |
| Usable Length (LU) | 1.739″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 2.854″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 5.059″ |
| Point Length (PL) | 0.098″ |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 4.961″ |
| Feature | New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.,Long drill life and high efficiency drilling of holes in stainless steel. |
