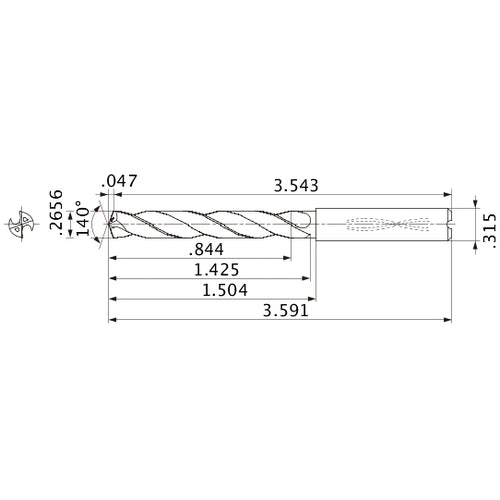

MMS0675X3D080 DP7020 0.2656″ Dia. × 0.315″ Shank × 1.425″ Flute Length × 3.591″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03601455
Brand: Mitsubishi Materials USA
Model #: 601455
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.2656″ |
| Flute Helix Angle (FHA) | 30 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.2656″ |
| Cutting Edge Material | Carbide |
| Length Group | 3xD |
| Grade | DP7020 |
| Applicable Material | Cast Iron |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 0.315″ |
| Series/List # | MMS_INCH |
| Head Length (LH) | 1.504″ |
| Usable Length (LU) | 0.844″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 1.425″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 3.591″ |
| Point Length (PL) | 0.047″ |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 3.543″ |
| Feature | New grade DP7020 and a unique margin, developed specifically for stainless steel, complement high flow coolant holes.,Long drill life and high efficiency drilling of holes in stainless steel. |
