VFHVRBD030R08N060T09 SOLID CARB EM
Item #: MB03568595
Brand: Mitsubishi Materials USA
Model #: 568595

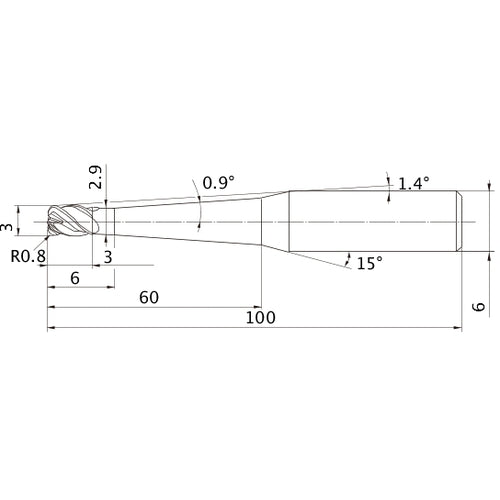

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3 mm |
| Corner Radius (RE) | 0.8 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 2.9 mm |
| Depth of Cut Maximum (APMX) | 3 mm |
| Body Half Taper Angle (BHTA) | 0.9 Degrees |
| Overall Length (OAL) | 100 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Coating | VF |
| Length Group | Taper Neck |
| End Shape | Corner Radius |
| Measurement Type | Metric |
| Usable Length (LU) | 6 mm |
| Series/List # | VFHVRB_TAPER_NECK |
