SRFU12S16M INDEXABLE ENDMILL
Item #: MB03538151
Brand: Mitsubishi Materials USA
Model #: 538151

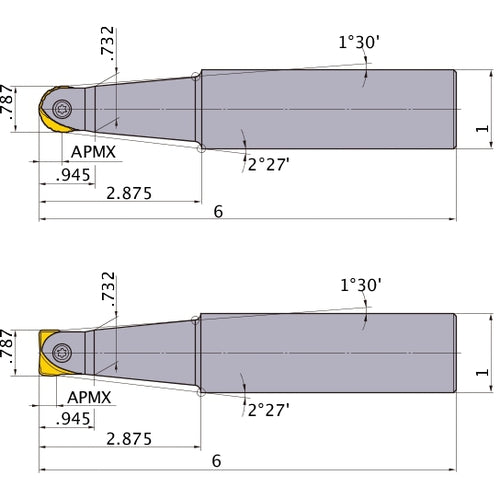

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 0.787″ |
| Usable Length (LU) | 0.945″ |
| Cutting Diameter (DC) | 0.787″ |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 1 |
| Body Diameter (BD) | 0.732″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Direction (HAND) | Right Hand |
| Head Length (LH) | 2-7/8″ |
| Series/List # | SRF_INCH |
| Functional Length (LF) | 6″ |
| Measurement Type | Inch |
