AOX445R503S32 INDX EM
Item #: MB03519363
Brand: Mitsubishi Materials USA
Model #: 519363

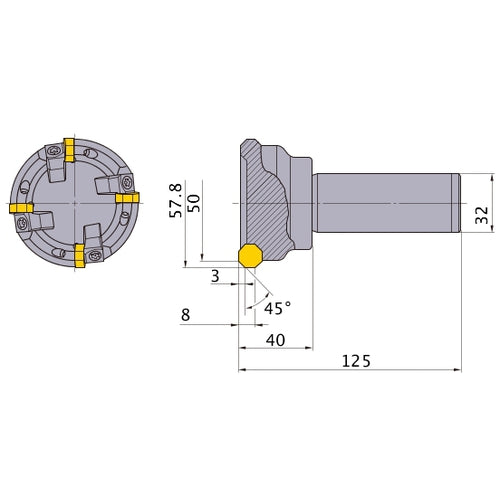

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 50 mm |
| Functional Length (LF) | 125 mm |
| Cutting Diameter (DC) | 50 mm |
| Flute Count (NOF) | 3 |
| Cutting Diameter Maximum (DCX) | 57.8 mm |
| Tool Cutting Edge Angle (KAPR) | 45 Degrees |
| Cutting Item Count (CICT) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 8 mm |
| Series/List # | AOX445 |
| Connection Diameter Machine Side (DCONMS) | 32 mm |
| Measurement Type | Metric |
| Head Length (LH) | 40 mm |
