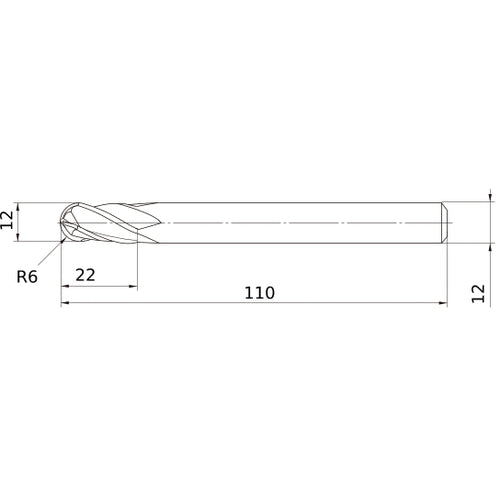

12 mm Dia. × 12 mm Shank × 22 mm DOC × 110 mm OAL, Carbide 4 Flute, 30° Helix, Ballnose End Mill VF4MBR0600
Item #: MB03510537
Brand: Mitsubishi Materials USA
Model #: 510537
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 12 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Corner Radius (RE) | 6 mm |
| Depth of Cut Maximum (APMX) | 22 mm |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 110 mm |
| Length Group | Medium |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | VF |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | VF4MB |
