VF4MBR0400 SOLID CARBIDE EM
Item #: MB03510511
Brand: Mitsubishi Materials USA
Model #: 510511

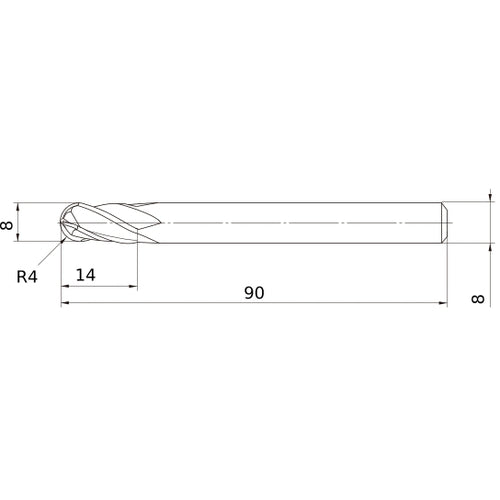

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 8 mm |
| End Shape | Ball |
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Corner Radius (RE) | 4 mm |
| Depth of Cut Maximum (APMX) | 14 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Overall Length (OAL) | 90 mm |
| Length Group | Medium |
| Coating | VF |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | VF4MB |
| Flute Helix Angle (FHA) | 30 Degrees |
