VF4MBR0300 SOLID CARBIDE EM
Item #: MB03510502
Brand: Mitsubishi Materials USA
Model #: 510502

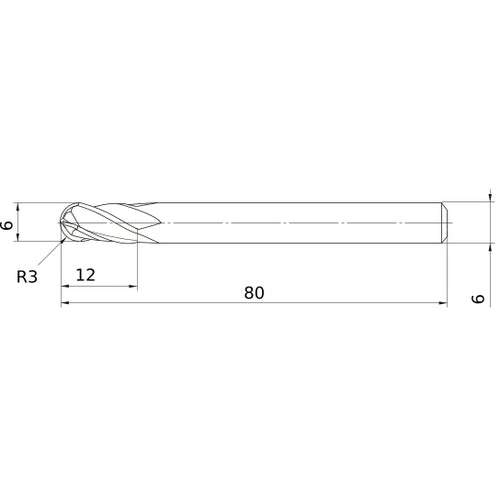

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| End Shape | Ball |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Corner Radius (RE) | 3 mm |
| Depth of Cut Maximum (APMX) | 12 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Overall Length (OAL) | 80 mm |
| Length Group | Medium |
| Coating | VF |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | VF4MB |
| Flute Helix Angle (FHA) | 30 Degrees |
