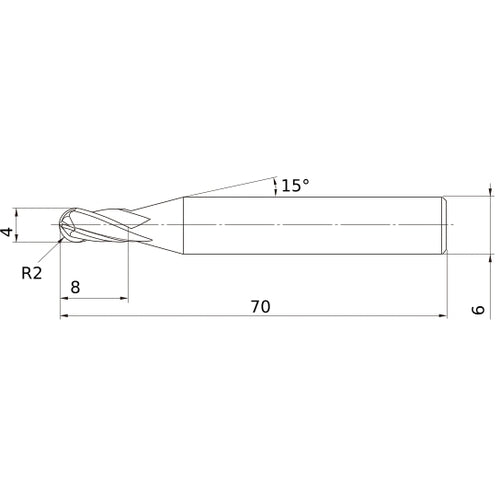

4 mm Dia. × 6 mm Shank × 8 mm DOC × 70 mm OAL, Carbide 4 Flute, 30° Helix, Ballnose End Mill VF4MBR0200
Item #: MB03510481
Brand: Mitsubishi Materials USA
Model #: 510481
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4 mm |
| Corner Radius (RE) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Depth of Cut Maximum (APMX) | 8 mm |
| Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 70 mm |
| Length Group | Medium |
| Cutting Edge Material | Carbide |
| End Shape | Ball Nose |
| Coating | VF |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | VF4MB |
| Flute Helix Angle (FHA) | 30 Degrees |
