0.6 mm Dia. × 4 mm Shank × 0.48 mm DOC × 40 mm OAL, Carbide 2 Flute, 30° Helix, Ballnose End Mill VF2XLBSR0030N030
Item #: MB03510300
Brand: Mitsubishi Materials USA
Model #: 510300

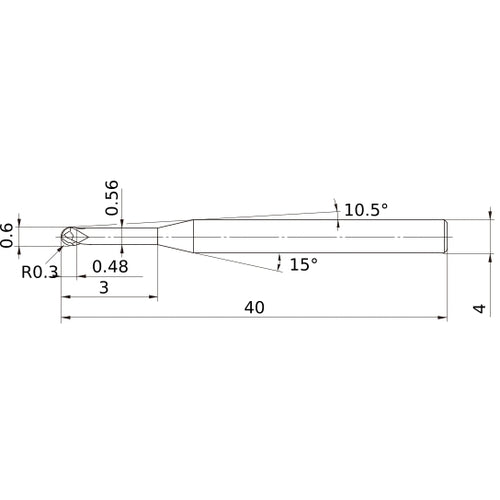

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.6 mm |
| Corner Radius (RE) | 0.3 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Neck Diameter (DN) | 0.56 mm |
| Depth of Cut Maximum (APMX) | 0.48 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 40 mm |
| Tool Type | Solid Carbide Endmill |
| Cutting Edge Material | Carbide |
| Length Group | Long - Necked |
| Coating | VF |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | VF2XLBS |
| Usable Length (LU) | 3 mm |
