VF2WBR0200N100
Item #: MB03509501
Brand: Mitsubishi Materials USA
Model #: 509501

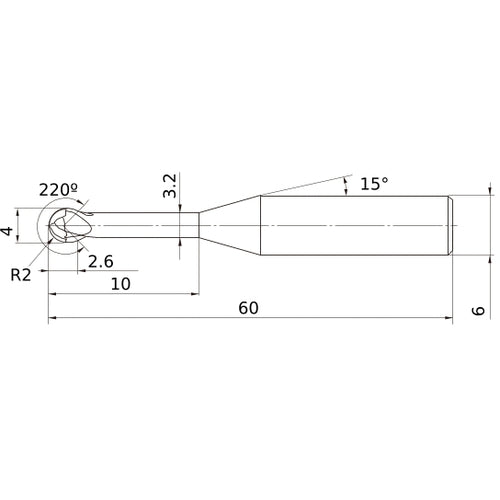

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4 mm |
| Corner Radius (RE) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 3.2 mm |
| Depth of Cut Maximum (APMX) | 2.6 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 60 mm |
| Length Group | Medium |
| Coating | VF |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Usable Length (LU) | 10 mm |
| Series/List # | VF2WB |
