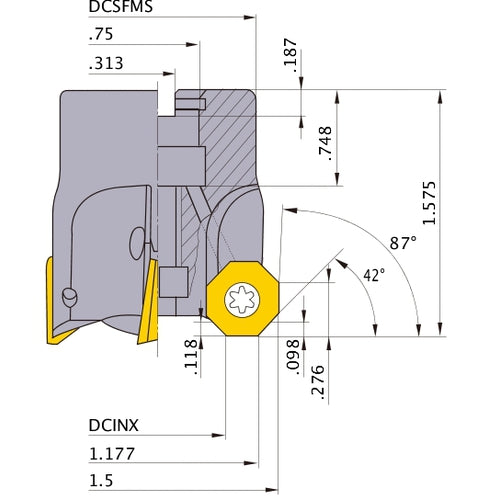

BOE4R1503X FACE MILL
Item #: MB03504866
Brand: Mitsubishi Materials USA
Model #: 504866
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1.177″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 1.177″ |
| Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Functional Length (LF) | 1.575″ |
| Depth of Cut Maximum (APMX) | 0.276″ |
| Tool Cutting Edge Angle (KAPR) | 42 Degrees |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Series/List # | BOE4_INCH |
