MSMHZDD15/32 CARBIDE ENDMILL
Item #: MB03494477
Brand: Mitsubishi Materials USA
Model #: 494477

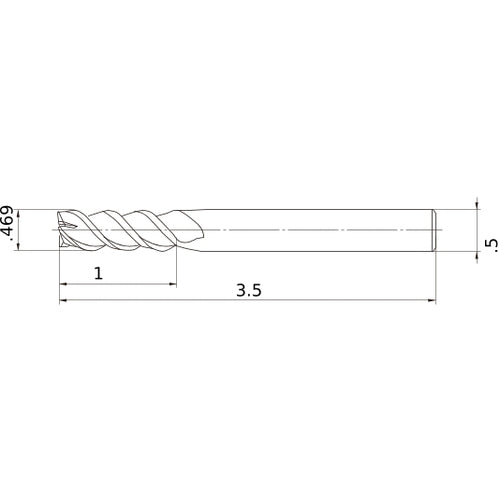

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.469″ |
| Flute Helix Angle (FHA) | 45 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| End Shape | Center Cutting |
| Depth of Cut Maximum (APMX) | 1″ |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 |
| Overall Length (OAL) | 3-1/2″ |
| Length Group | Medium |
| Coating | MS |
| Measurement Type | Inch |
| Flute Count (NOF) | 3 |
| Series/List # | MSMHZD_INCH |
