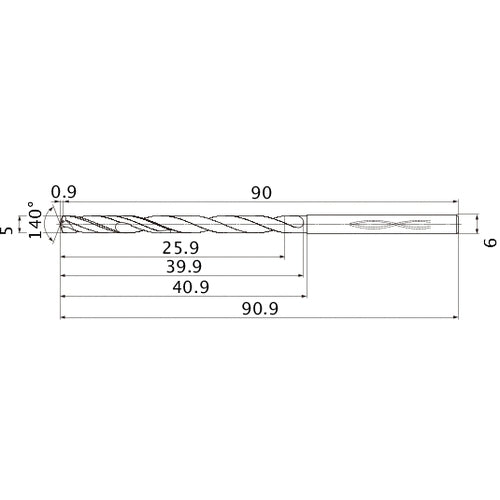

MHS0500L040B VP15TF 5 mm Dia. × 6 mm Shank × 39.9 mm Flute Length × 90.9 mm OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03477087
Brand: Mitsubishi Materials USA
Model #: 477087
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 5 mm |
| Flute Helix Angle (FHA) | 25 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 5 mm |
| Cutting Edge Material | Carbide |
| Length Group | 5xD |
| Grade | VP15TF |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Series/List # | MHS |
| Head Length (LH) | 40.9 mm |
| Usable Length (LU) | 25.9 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 39.9 mm |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 90.9 mm |
| Point Length (PL) | 0.9 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 90 mm |
| Feature | High backling strength and unique double margin. |
