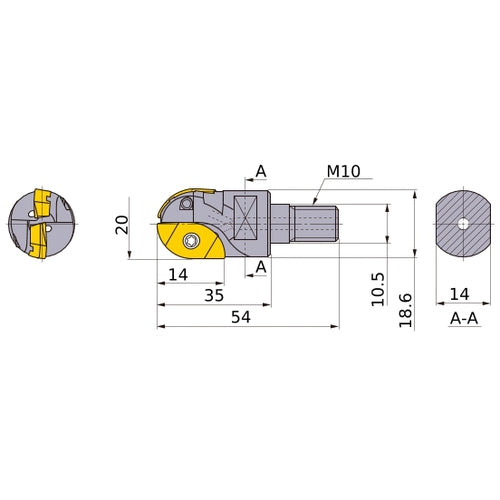

SRM2200AM10S35 INDEXABLE ENDMILL
Item #: MB03454176
Brand: Mitsubishi Materials USA
Model #: 454176
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Flute Count (NOF) | 2 |
| Cutting Diameter (DC) | 20 mm |
| Body Diameter (BD) | 18.6 mm |
| Cutting Item Count (CICT) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 14 mm |
| Series/List # | SRM2 |
| Overall Length (OAL) | 54 mm |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10.5 mm |
| Connection Retention Knob Thread Size (CRKS) | M10 |
| Functional Length (LF) | 35 mm |
