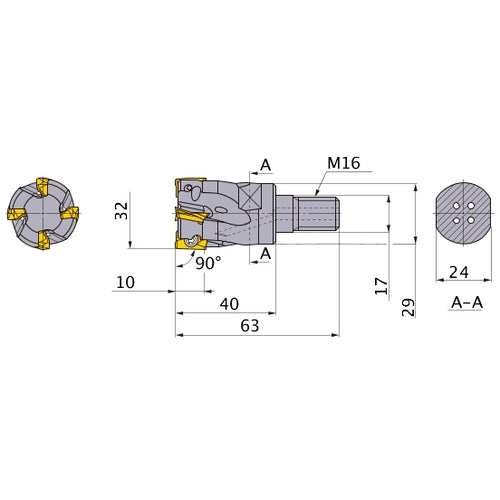

APX3000R325M16A40
Item #: MB03454011
Brand: Mitsubishi Materials USA
Model #: 454011
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 32 mm |
| Flute Count (NOF) | 5 |
| Cutting Diameter (DC) | 32 mm |
| Body Diameter (BD) | 29 mm |
| Cutting Item Count (CICT) | 5 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 10 mm |
| Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 63 mm |
| Series/List # | APX3000 |
| Ramping Angle Maximum (RMPX) | 3.1 Degrees |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 17 mm |
| Connection Retention Knob Thread Size (CRKS) | M16 |
| Functional Length (LF) | 40 mm |
