VF3XBR0040T0024L006
Item #: MB03449617
Brand: Mitsubishi Materials USA
Model #: 449617

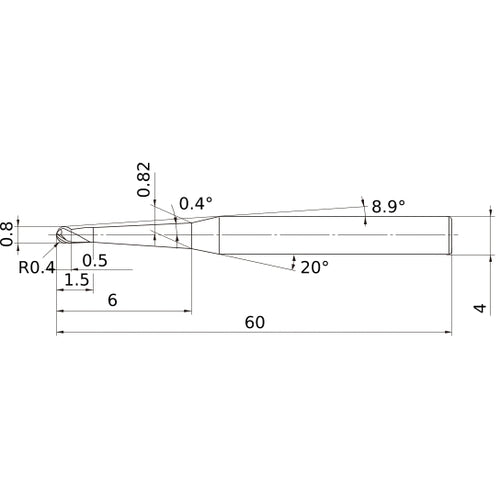

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.8 mm |
| Corner Radius (RE) | 0.4 mm |
| Connection Diameter Machine Side (DCONMS) | 4 mm |
| Neck Diameter (DN) | 0.82 mm |
| Depth of Cut Maximum (APMX) | 0.5 mm |
| Body Half Taper Angle (BHTA) | 0.4 Degrees |
| Overall Length (OAL) | 60 mm |
| Length Group | Taper Neck |
| Coating | VF |
| End Shape | Ball Nose |
| Flute Count (NOF) | 3 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | VF3XB |
| Usable Length (LU) | 1.5 mm |
