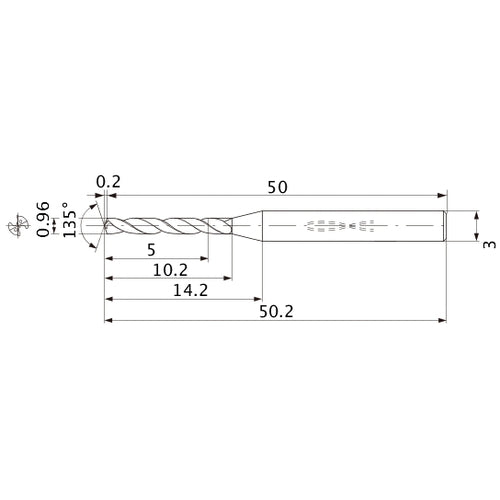

MWS0096LB VP15TF 0.96 mm Dia. × 3 mm Shank × 10.2 mm Flute Length × 50.2 mm OAL, 135°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03411299
Brand: Mitsubishi Materials USA
Model #: 411299
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 0.96 mm |
| Flute Helix Angle (FHA) | 25 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 0.96 mm |
| Cutting Edge Material | Carbide |
| Length Group | 5xD |
| Grade | VP15TF |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium |
| Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 3 mm |
| Series/List # | MWS |
| Head Length (LH) | 14.2 mm |
| Usable Length (LU) | 5 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 10.2 mm |
| Point Angle (SIG) | 135 Degrees |
| Overall Length (OAL) | 50.2 mm |
| Point Length (PL) | 0.2 mm |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 50 mm |
| Feature | For high accuracy and efficient drilling of steels, carbon steels and difficult-to-cut materials. |
