VF2XLBR0060N120S06
Item #: MB03379348
Brand: Mitsubishi Materials USA
Model #: 379348

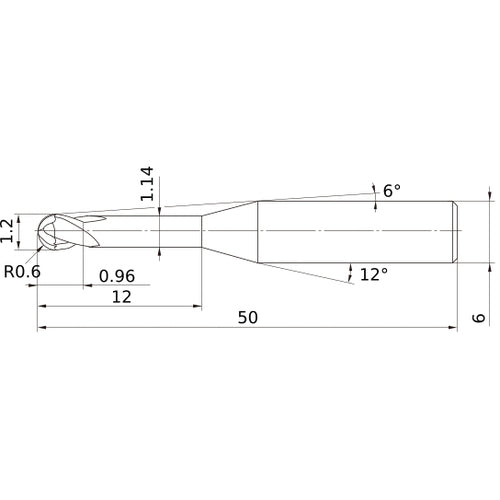

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1.2 mm |
| Corner Radius (RE) | 0.6 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 1.14 mm |
| Depth of Cut Maximum (APMX) | 0.96 mm |
| Body Half Taper Angle (BHTA) | 12 Degrees |
| Overall Length (OAL) | 50 mm |
| Length Group | Long - Necked |
| Coating | VF |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | VF2XLB |
| Usable Length (LU) | 12 mm |
