APX4000UR0205A FACE MILL
Item #: MB03373149
Brand: Mitsubishi Materials USA
Model #: 373149

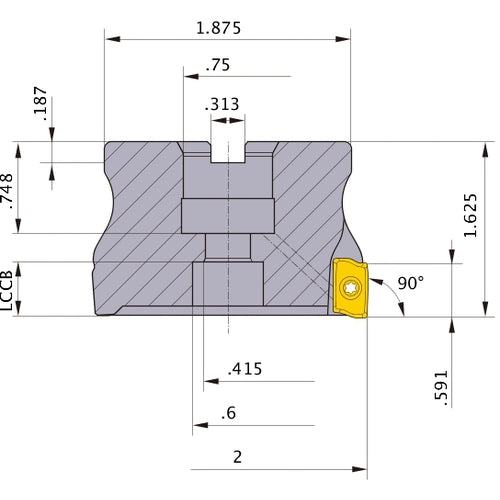

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 2″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 2″ |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.591″ |
| Functional Length (LF) | 1-5/8″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 4 Degrees |
| Series/List # | APX4000_INCH |
