VCPSRBD0080N06R03
Item #: MB03360954
Brand: Mitsubishi Materials USA
Model #: 360954

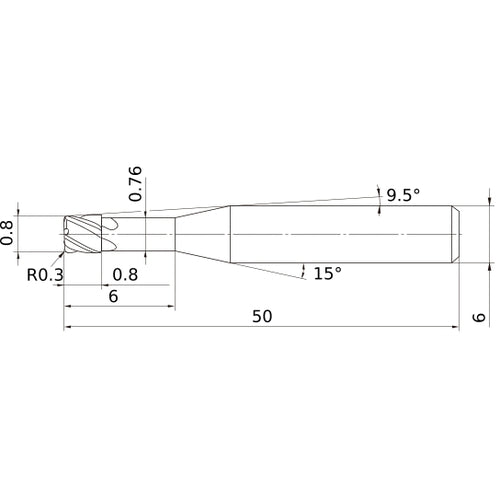

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 0.8 mm |
| Corner Radius (RE) | 0.3 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 0.76 mm |
| Depth of Cut Maximum (APMX) | 0.8 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 50 mm |
| Length Group | Short |
| Coating | VC |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 30 Degrees |
| Series/List # | VCPSRB |
| Usable Length (LU) | 6 mm |
