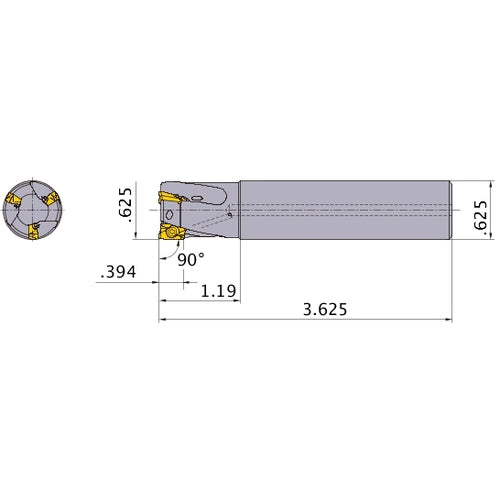

APX3000UR102SA10SB INDEXABLE ENDMIL
Item #: MB03351290
Brand: Mitsubishi Materials USA
Model #: 351290
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 5/8″ |
| Functional Length (LF) | 3-5/8″ |
| Cutting Diameter (DC) | 5/8″ |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.394″ |
| Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 11.5 Degrees |
| Series/List # | APX3000_INCH |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Measurement Type | Inch |
| Head Length (LH) | 1.19″ |
