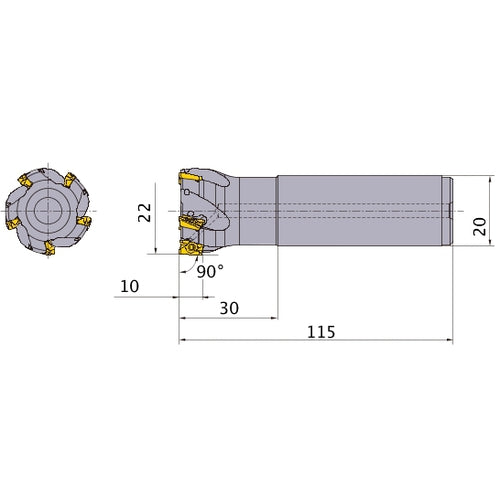

APX3000R223SA20SA INDEXABLE ENDMILL
Item #: MB03339856
Brand: Mitsubishi Materials USA
Model #: 339856
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 22 mm |
| Functional Length (LF) | 115 mm |
| Cutting Diameter (DC) | 22 mm |
| Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 10 mm |
| Cutting Direction (HAND) | Right Hand |
| Ramping Angle Maximum (RMPX) | 5.7 Degrees |
| Series/List # | APX3000 |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Measurement Type | Metric |
| Head Length (LH) | 30 mm |
