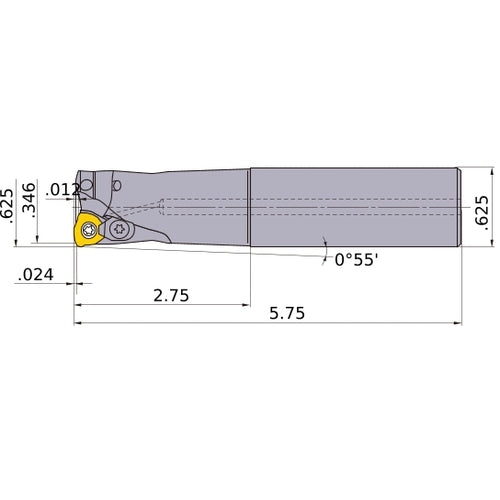

AJXU06R102SA10L INDEXABLE ENDMILL
Item #: MB03330202
Brand: Mitsubishi Materials USA
Model #: 330202
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 0.346″ |
| Head Length (LH) | 2-3/4″ |
| Cutting Diameter (DC) | 0.346″ |
| Functional Length (LF) | 5-3/4″ |
| Cutting Diameter Maximum (DCX) | 5/8″ |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.024″ |
| Series/List # | AJX_INCH |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
