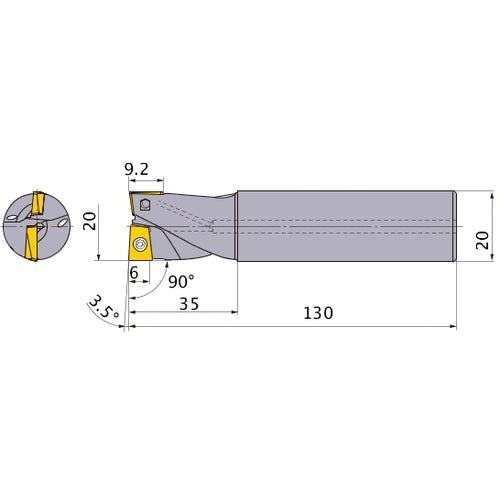

AQXR202SA20S INDEXABLE ENDMILL
Item #: MB03312805
Brand: Mitsubishi Materials USA
Model #: 312805
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 20 mm |
| Functional Length (LF) | 130 mm |
| Cutting Diameter (DC) | 20 mm |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 9.2 mm |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Series/List # | AQX |
| Head Length (LH) | 35 mm |
| Measurement Type | Metric |
