VC4JRBD1000R0050
Item #: MB03261331
Brand: Mitsubishi Materials USA
Model #: 261331

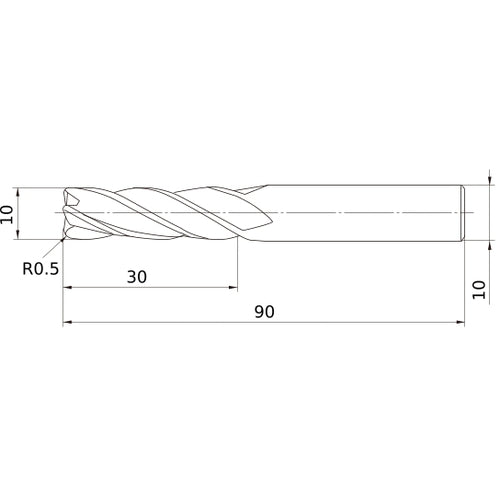

| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 10 mm |
| Flute Helix Angle (FHA) | 30 Degrees |
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Corner Radius (RE) | 0.5 mm |
| Depth of Cut Maximum (APMX) | 30 mm |
| Length Group | Semi Long |
| Overall Length (OAL) | 90 mm |
| End Shape | Ball Nose |
| Coating | VC |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | VC4JRB |
