M-FSCLPL-103-C BORING BAR
Item #: MB03237913
Brand: Mitsubishi Materials USA
Model #: 237913

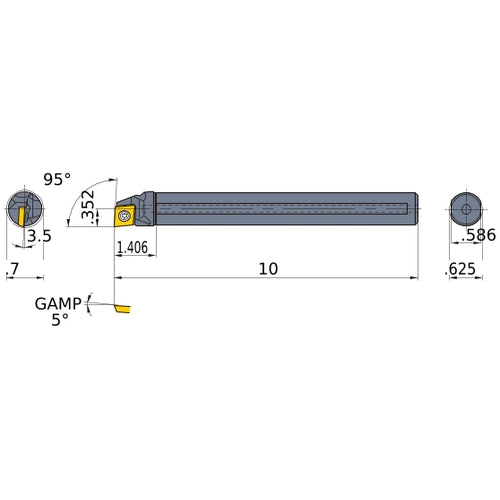

| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 10″ |
| Frontal Edge Angle | 95 Degrees |
| Head Length (LH) | 1.406″ |
| Rake Angle Radial (GAMF) | 3.5 Degrees |
| Shank Height (H) | 0.586″ |
| Series/List # | M-FSCLC_P_INCH |
| Functional Width (WF) | 0.352″ |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.7″ |
