MAS03750MB HTi10 3/8″ Dia. × 0.3937″ Shank × 2.155″ Flute Length × 3.887″ OAL, 140°, 2 Flute, Coolant Thru, Solid Carbide Drill
Item #: MB03214965
Brand: Mitsubishi Materials USA
Model #: 214965

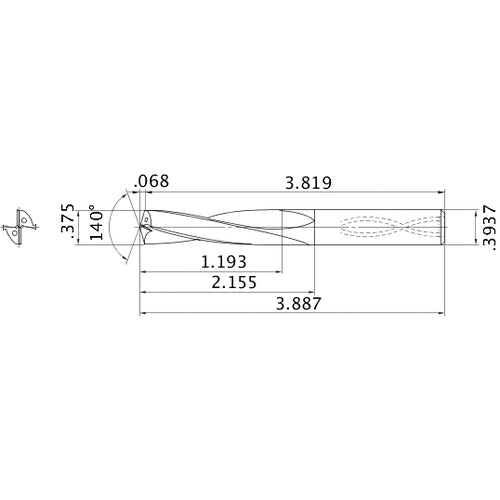

| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | 3/8″ |
| Flute Helix Angle (FHA) | 10 Degrees |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 3/8″ |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.375″ |
| Grade | HTi10 |
| Length Group | 3xD |
| Measurement Type | Inch |
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials |
| Series/List # | MAS_INCH |
| Connection Diameter Machine Side (DCONMS) | 0.3937″ |
| Usable Length (LU) | 1.193″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Length Chip Flute (LCF) | 2.155″ |
| Point Angle (SIG) | 140 Degrees |
| Overall Length (OAL) | 3.887″ |
| Point Length (PL) | 0.068″ |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 3.819″ |
| Feature | High hole accuracy.,Pre-hole drilling for rolled tap. |
