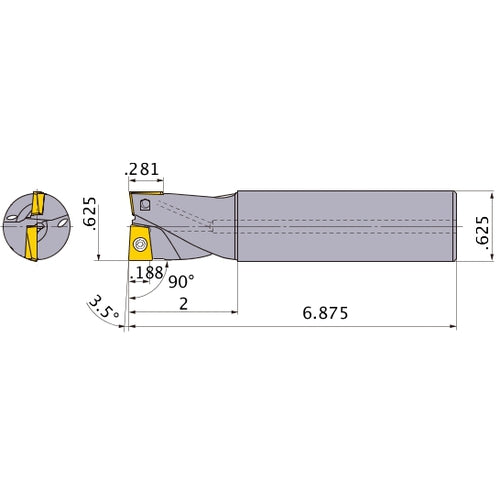

AQXUR102SA10L INDEXABLE ENDMILL
Item #: MB03208805
Brand: Mitsubishi Materials USA
Model #: 208805
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 5/8″ |
| Functional Length (LF) | 6-7/8″ |
| Cutting Diameter (DC) | 5/8″ |
| Flute Count (NOF) | 2 |
| Cutting Item Count (CICT) | 2 |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Depth of Cut Maximum (APMX) | 0.281″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Series/List # | AQX_INCH |
| Head Length (LH) | 2″ |
| Measurement Type | Inch |
