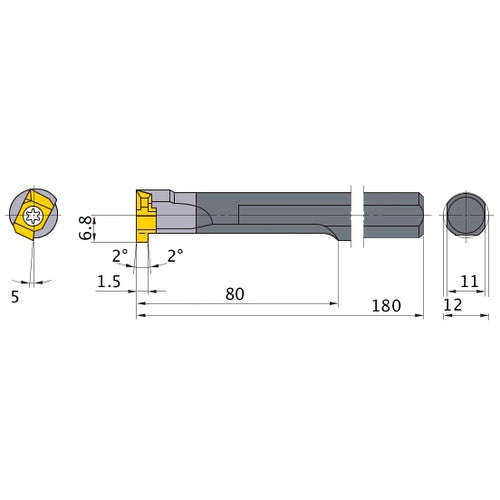

FSL5212R BAR
Item #: MB03115081
Brand: Mitsubishi Materials USA
Model #: 115081
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 12 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 180 mm |
| Rake Angle Radial (GAMF) | 5 Degrees |
| Head Length (LH) | 80 mm |
| Series/List # | FSL52 |
| Shank Height (H) | 11 mm |
| Measurement Type | Metric |
| Functional Width (WF) | 6.8 mm |
| Cutting Depth Maximum (CDX) | 2 mm |
| Minimum Bore Diameter (DMIN) | 14 mm |
