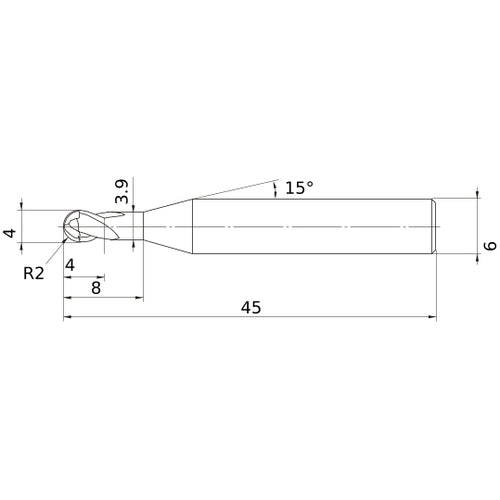

VFR2SSBR0200
Item #: MB0310588802
Brand: Mitsubishi Materials USA
Model #: 10588802
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 4 mm |
| Corner Radius (RE) | 2 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Neck Diameter (DN) | 3.9 mm |
| Depth of Cut Maximum (APMX) | 4 mm |
| Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 45 mm |
| Length Group | Short |
| Coating | VFR |
| End Shape | Ball Nose |
| Flute Count (NOF) | 2 |
| Measurement Type | Metric |
| Flute Helix Angle (FHA) | 20 Degrees |
| Series/List # | VFR2SSB |
| Usable Length (LU) | 8 mm |
